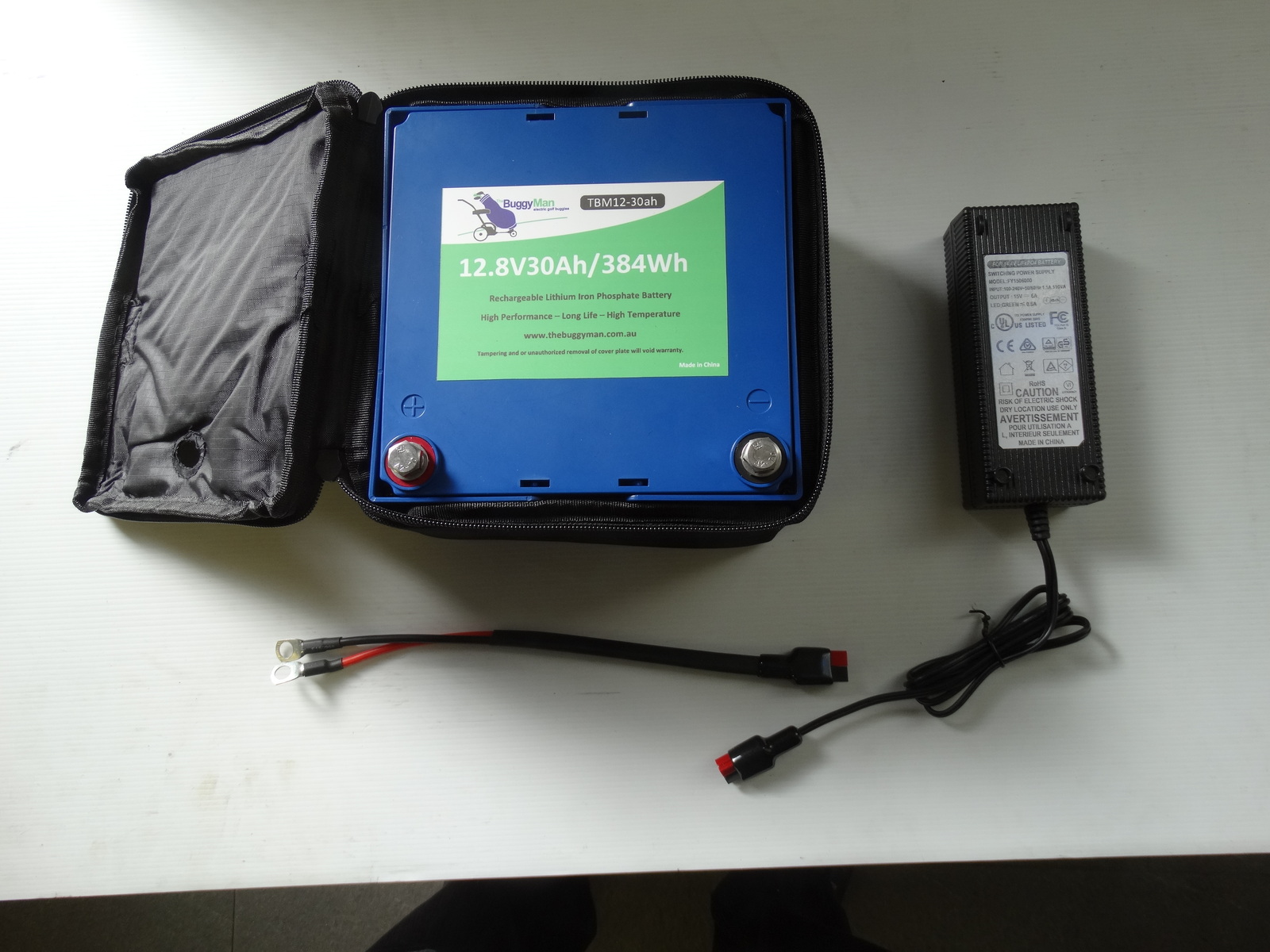

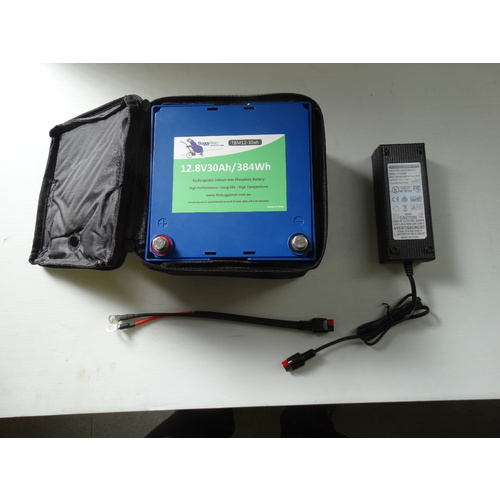

TBM Lithium Battery 12.8V - 30AH - B

The 30Ah - B TBM Lithium Battery is a powerful tool for the golfer with an older/heavier buggy.  LiFePO4 Lithium Iron Phosphate / LFP rechargeable battery.

• Lightweight & Compact
• Long Cycle Life
• Fast Recharge
• Safe Battery

Our 30Ah - B  TBM Lithium Battery is sold with 24 Month Repair or Replacement Warranty!

Lithium Battery Specifications

Product: Lithium-ion Battery Pack
Model: 4IFR12-30-Y （18650-3.2V-4S9P

Positive output: M8
Negative output: M8
Nominal voltage: 12V
Typical capacity: 30±0.5Ah At 0.2C discharge rate
Normal current: 20A
Max continuous discharge current: 30A ≤5min
Discharge cut-off voltage: About 10V
Charge voltage: 14.4±0.1V
Charge current: ≤6A
Inner resistance: ≤40mΩ

Operation temperature range
Charge: 0℃～+45℃
Discharge: -20℃～+60℃. When the environment temperature is higher than 45℃，please pay attention to ventilation and heat rejection.
Storage temperature range: 0℃～40℃ （Capacity 80%）. Recommended long-term storage temperature is 15~25℃

Weight: 3.9±0.1Kg
Size（LxWxH）: 190mm x 190mm x 112mm

Protection function
Over charge protection、Over discharge protection、Over current protection、Temperature protection、Balanced function

Characteristics

Standard charge
Charge the battery with Lithium ion battery special test cabinet, supply 14.4V voltage, constant-current 0.2C(A) current until current down to 0.02C（A）.

Standard discharge
Discharge the battery at 0.2C（A） to 10.0V or battery cut off voltage.
